Product Type PF

IP RATING:
IP66 & IP68 (50 metres – 30 minutes)
OPERATING TEMP:
M16-M63 -35°C to +95°C
M12-20°C to +80°C
MATERIALS:
Polyamide
IMPACT RESISTANCE:
7Nm
OPTIONS:
Colour – Black / Blue
Industrial Non-Ex version – Omit “E” from part number
ACCESSORIES:
Nylon Locknut / IP Washers



Description

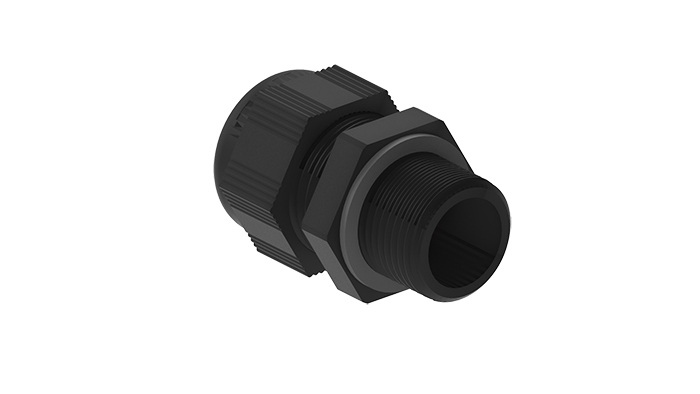

“PF” type glands, certified Increased Safety Ex eb are suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Group IIC. They are manufactured from polyamide and provide a controlled pull resistant displacement seal on the cable outer sheath providing both Ex eb & IP protection. The gland has been tested to IP66 & IP68 to 50 metres and is fully compliant with the Increased Safety standard with no reduced impact restriction. Available in black or blue, in a range of thread forms complete with an IP flat washer on metric entry threads.

Standards

COMPLIANCE STANDARDS:
EN 60079-0, EN 60079-7, EN 60079-31IEC 60079-0, IEC 60079-7, IEC 60079-31 & IEC 60529

CERTIFICATION:
ATEX
II 2GD Ex eb IIC / Ex tb IIIC
IECEx
Ex eb IIC / Ex tb Db
EAC – Russia
2Ex e II Gc X / Ex tb IIIC Db X
CEC – Canada
CAN/CSA C22.2
NEC – USA
ANSI/UL514B
VDE
DIN EN 62444 (VDE 0619)
LLOYD’S
Ex eb IIC / Ex tb IIIC
INMETRO
Ex eb IIC Gb / Ex tb IIIC Db
DNV
Ex eb IIC / Ex tb Db



Certification

CERTIFICATION No:
ATEX
LCIE 07ATEX6082X
IECEx
LCI 10.0008X
EAC – Russia
RU C-FR.BH02.В.00558/20
CEC – Canada
E184471
NEC – USA
E184471
VDE
40046804
LLOYD’S
LR2124442TA
INMETRO
BVC 11.0661-X
DNV
TAE00004VE

Installations

Instructions

Multi Language
